Introduction

Castor is an IDE that can transform your natural language requirements into production-ready code. No need to arrive with a polished specification document — just describe what you're building to our AI agent, refine the requirements together, and watch your ideas take shape as code.

---

At the heart of Castor is bidirectional synchronization, also known as round-trip engineering. Any changes you make to your diagrams are automatically reflected in the code, and vice versa, keeping your documentation and code perfectly aligned throughout development.

Installation

Download Castor

Getting started is easy:

1. Go to the Download page to install the IDE
2. Open the downloaded file and follow the installation instructions for your operating system (Windows, macOS, Linux)
3. Open Castor and start coding!

This guide will walk you through Castor's primary features by working with a real project. You'll learn how to use the DAM agent, the diagram editor, the code generation and the code synchronization features to enhance your development workflow.

Head to the Tutorial to get started.

Core Concepts

Understanding these core concepts will help you get the most out of Castor IDE.

The Castor Workflow

Castor follows a structured lifecycle from requirements to running code:

1. Requirements — Write or generate requirements.md describing what you're building
2. Design — Generate design.md with architectural decisions and non-functional requirements
3. Analysis — Analyze requirements to extract symbols and generate domain and sequence diagrams
4. Promote — Run /promote to convert analysis diagrams into code-generating ERD and Class diagrams
5. Code Generation — ERD and Class diagrams automatically generate framework-specific code
6. Iterate — Edit diagrams or code; synchronization keeps everything aligned

Round-Trip Engineering

Round-trip engineering ensures that changes made in one artifact automatically propagate to related artifacts. In Castor:

• Code → Diagram: Add a property in a code file, and it appears in the corresponding ERD or Class diagram
• Diagram → Code: Add an entity or class in a diagram, and the corresponding code file is generated

This bidirectional sync applies to ERD (.erd.castor) and Class (.class.castor) diagrams.

Diagram Types

Castor uses four diagram types, split into two categories:

Analysis Diagrams

Generated automatically from requirement analysis. These capture your design intent:

• Domain Diagrams (.domain.castor) — Business concepts and relationships. Do not generate code; used for requirements traceability.
• Sequence Diagrams (.seq.castor) — Interaction flows for use cases. Participate in downstream codegen context.

Code-Generating Diagrams

Created via /promote. These produce and sync with code:

• ERD Diagrams (.erd.castor) — Data models that generate entity/model files.
• Class Diagrams (.class.castor) — Application architecture that generates services, controllers, and modules.

Intermediate Representation (IR)

The IR is Castor's central coordination model — an in-memory graph that connects requirements, diagrams, and code. When you save a diagram or code file, the IR is updated first, then sync handlers propagate changes to the other artifacts. A source identifier on each change event prevents infinite update loops.

Supported Frameworks

Castor currently supports code generation for:

• NestJS (TypeScript) — Entities, services, controllers, modules
• FastAPI (Python) — Models, routers, schemas

Your target framework is set in .castor/castor.config.json. See Configuration for details.

DAM Agent

The DAM Agent is Castor's primary AI assistant. It orchestrates your entire development workflow from requirements to implementation.

What the DAM Agent Can Do

• Gather Requirements: Transform natural language requirements into a structured requirements.md
• Create Design Documents: Generate design.md with architectural decisions and non-functional requirements
• Generate Diagrams: Create domain and sequence diagrams from analyzed requirements
• Promote to Code-Generating Diagrams: Convert domain/sequence diagrams into ERD and Class diagrams that produce code
• Configure Projects: Auto-create .castor/castor.config.json with your chosen framework
• Answer Questions: Help you understand your codebase and suggest improvements

Using the DAM Agent

1. Open the AI Chat panel via View → AI Chat
2. Select @DAM using the agent selector
3. Choose your mode (see below)
4. Type your prompt or slash command

Chat Modes

The dropdown next to the agent selector controls which context the DAM agent uses:

Mode	Purpose
Requirements	Generate or refine requirements.md from natural language descriptions
Design	Generate or refine design.md using your requirements as context

Chat vs Act

The Chat/Act toggle controls how the agent responds:

• Chat: The agent suggests changes and explains what it would do. You review before anything is modified.
• Act: The agent directly makes changes to your project files. Use this when running slash commands like /promote.

Slash Commands

Command	Description
/promote	Promote domain and sequence diagrams into code-generating ERD and Class diagrams, then trigger code generation
/promote <concept>	Promote specific concepts only (e.g. /promote Train Route)

Typical Workflow

1. Requirements: Set mode to Requirements, describe your project, and let DAM generate requirements.md
2. Design: Switch to Design mode and ask DAM to generate design.md from your requirements
3. Analysis: In the Castor Panel, trigger requirement analysis (star icon) to generate domain and sequence diagrams
4. Promote: In Act mode, run /promote to generate ERD and Class diagrams and trigger code generation
5. Iterate: Edit diagrams or code — synchronization keeps everything aligned

AI Chat Interface

The AI Chat is your primary interface for interacting with Castor's agents.

Opening the Chat

Access the AI Chat via View → AI Chat. The chat panel opens on the right side of the IDE.

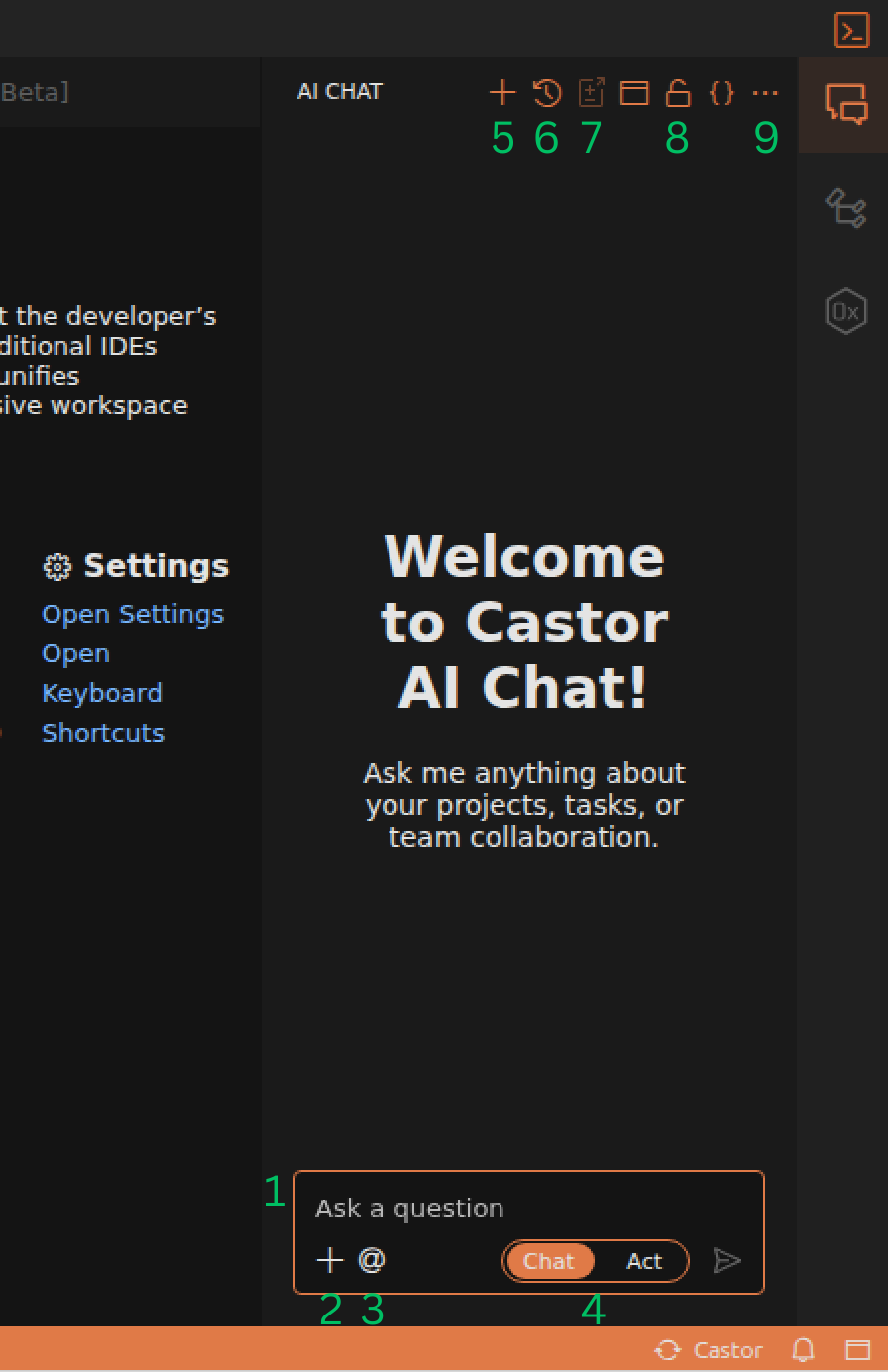

Chat Interface Components

1. Text Input Box: Where you type your prompts and requests
2. Attach Elements to Context: Add files or code snippets to provide context for your request
3. Agent Selector (@): Use the @ symbol to select which AI agent to interact with (e.g., @DAM)
4. Chat/Act Toggle: Controls whether the AI suggests changes for your approval or acts directly
5. New Chat Session: Start a fresh conversation with the agent
6. Show Chat History: View your previous conversation sessions
7. Summarize Current Session: Get a summary of the current conversation
8. Turn Auto Scrolling Off: Disable automatic scrolling to the latest message
9. More Actions: Open the agent settings, AI history, AI settings

Chat vs Act Mode

The Chat/Act toggle gives you control over how the AI responds:

Chat Mode

The AI suggests changes and explains what it would do. You can review and approve before any modifications are made. Best for understanding and learning.

Act Mode

The AI directly makes changes to your project files based on your prompt. Best when you're confident in your request and want faster results.

Agent Settings

Castor allows you to configure AI agents with your own API keys and choose different LLM providers for each agent. This gives you flexibility in how you interact with AI capabilities.

Accessing Agent Settings

To configure agent settings:

1. Open the AI Chat panel via View → AI Chat
2. Click the More Actions button (three dots) in the chat header
3. Select Open Agent Settings

Adding Personal API Keys

You can use your own API keys from supported LLM providers to power the AI agents:

1. Open the AI Settings panel, as shown in the gif below
2. Select the model whose API key you want to configure (e.g., OpenAI, Anthropic, Google)
3. In the API Key field, enter your personal API key from your chosen provider

Supported Providers: OpenAI, Anthropic, Google (Gemini)

Switching LLMs Per Agent

Each agent can be configured to use a different LLM model:

1. Open the Agent Settings panel
2. Select the agent you want to configure
3. Use the Language Model dropdown to select your preferred provider or select the default model
4. The default model will be used if no specific model is selected and is listed below the dropdown

Castor Panel

The Castor Panel is your central hub for managing all project artifacts. It provides a tree view of your requirements, design documents, and diagrams.

Accessing the Castor Panel

• Look for the Castor Beaver icon in the Activity Bar (left sidebar)
• Click the icon to open the Castor Panel
• The panel displays a tree structure of your project artifacts

Panel Sections

• Requirements: Your requirements.md file containing user stories, functional requirements, and acceptance criteria. Click to create the file if it doesn't exist yet.
• Validation Schema: The .castor/validation-schema.md file defining required fields and structure rules for your requirements and design documents. Customizable per project.
• Design: The design.md file with architectural decisions, technical specifications, and non-functional requirements. Can be generated from requirements using the DAM agent in Design mode.
• Requirement Symbols: After requirement analysis, displays the extracted symbols (use cases, entities, etc.) from your requirements.
• Diagrams: All diagram files for your project — Domain (.domain.castor), Sequence (.seq.castor), ERD (.erd.castor), and Class (.class.castor). Click a file to open it in the Diagram Editor.

File Icon Colors: An orange icon indicates the file exists, while a grey icon means it hasn't been generated yet.

Requirement Analysis

To trigger requirement analysis from the Castor Panel:

1. Under Requirement Symbols, hover over Requirements
2. Click the star icon beside it
3. Castor extracts symbols, runs sync, and generates domain and sequence diagrams

After analysis completes, you can inspect extracted symbols in the Symbol Table tab in the bottom panel.

Context Menu Actions

Right-click on items in the Castor Panel for additional options:

• Delete File: Remove a file from your project
• Open in Editor: View the file in the appropriate editor

Requirements Management

Castor helps you capture, organize, and track requirements throughout your development process.

Creating Requirements

Using the DAM Agent

1. Open AI Chat and select @DAM
2. Set the mode dropdown to Requirements
3. Describe your project requirements in natural language
4. The agent creates a structured requirements.md file with use cases, actors, goals, preconditions, and priorities

Manually

Click Requirements in the Castor Panel to create requirements.md, then write your use cases directly in the file.

Extracting from Code Comments

1. Select text in your editor that describes a requirement
2. Right-click and choose Extract Requirement Symbol
3. Classify the requirement type (functional, non-functional, user story)
4. The requirement is added to your requirements store and linked to the IR

Validation Schema

Castor uses a .castor/validation-schema.md file to enforce structure on your requirements and design documents. It defines required fields for each use case (such as Actors, Goal, Priority) and ensures consistency. You can customize these rules to fit your project.

Requirement Analysis

Once your requirements are written, you can analyze them to extract symbols and generate initial diagrams:

1. In the Castor Panel, under Requirement Symbols, hover over Requirements
2. Click the star icon to start analysis
3. Castor extracts symbols from requirements.md and triggers sync

What Analysis Produces

• Symbols: Extracted use cases, entities, and relationships visible in the Symbol Table tab in the bottom panel
• Domain Diagram: A .domain.castor file capturing business concepts and relationships
• Sequence Diagrams: .seq.castor files capturing interaction flows for each use case

Sync Activity

After symbol extraction, Castor automatically runs sync. Open the Sync tab in the bottom panel to see events such as nodes and relationships being added across Requirements, Diagrams, and Code.

Diagram Editor

Castor includes a powerful visual diagram editor powered by GLSP (Graphical Language Server Protocol).

Diagram Types

Castor supports four diagram types, split into two categories:

Analysis Diagrams (Generated from Requirements)

These diagrams are created automatically when you analyze requirements:

Type	File Extension	Purpose	Generates Code?
Domain	.domain.castor	Captures business concepts and relationships	No — used for requirements traceability
Sequence	.seq.castor	Captures interaction flows for use cases	Indirectly — participates in codegen context

Code-Generating Diagrams (Created via /promote)

These diagrams are created when you run /promote and directly produce code:

Type	File Extension	Purpose	Generated Files
ERD	.erd.castor	Data modeling (entities, properties, relationships)	NestJS: src/<feature>/entities/<name>.entity.ts / FastAPI: app/<feature>/<feature>_model.py
Class	.class.castor	Application architecture (services, controllers, modules)	NestJS: src/<feature>/<name>.service.ts, .controller.ts, .module.ts / FastAPI: app/<feature>/<feature>_router.py, _schema.py, _service.py

Key distinction: Domain and Sequence diagrams support analysis and design. ERD and Class diagrams are the primary code-generating diagram types that sync bidirectionally with code.

Opening Diagrams

• Click on a diagram file in the Castor Panel
• The diagram opens in the visual editor with the canvas in the center
• The Palette appears on the right side with available elements

Diagram Elements

Node Types

• Class: Represents a class with properties and methods
• Interface: Represents an interface
• Package: Groups related classes and interfaces
• Enum: Represents enumeration types
• Entity: Represents a data entity with attributes (ERD diagrams)

Edge Types (Relationships)

• Association: Basic relationship between elements
• Aggregation: "Has-a" relationship (hollow diamond)
• Composition: Strong "owns" relationship (filled diamond)
• Inheritance: "Is-a" relationship (extends)

Editing Diagrams

1. Add Elements: Select an element from the Palette, then click on the canvas to create it
2. Select Elements: Click on any element to select it
3. Move Elements: Drag selected elements to reposition them
4. Edit Labels: Double-click on an element to rename it
5. Add Methods/Attributes: Right-click on an element and use the context menu to add methods or attributes
6. Create Connections: Use the Connection Tool from the palette, then click and drag from one element to another
7. Delete Entities: Select "Enable deletion tool" in the diagram Palette, then click on the entity you want to delete
8. Delete Attributes/Methods: Right-click on the attribute or method you want to delete and choose "Delete"

Diagram Synchronization

ERD and Class diagrams synchronize bidirectionally with your code when you save:

• Diagram → Code: Adding an entity or class in a diagram creates or updates the corresponding code file
• Code → Diagram: Adding a property or method in code updates the corresponding diagram element

Domain diagrams do not generate code. Sequence diagrams participate in codegen context but do not directly produce files.

Save your diagram with Ctrl+S / Cmd+S to trigger synchronization.

Synchronization

Castor keeps your code, diagrams, and requirements in sync automatically. This is the core of round-trip engineering — changes in one artifact propagate to related artifacts.

How Synchronization Works

1. Change Detection: When you save a file, Castor detects what changed
2. Event Queuing: The change is added to the sync queue with a source identifier
3. IR Update: The Intermediate Representation is updated to reflect the change
4. Propagation: Sync handlers propagate the change to other artifacts
5. Loop Prevention: The source identifier prevents infinite update loops

Sync Handlers

Three specialized handlers process synchronization events:

• Code Sync Handler: Propagates changes to code files (TypeScript for NestJS, Python for FastAPI)
• Diagram Sync Handler: Updates GLSP diagram models
• Requirements Sync Handler: Updates requirements documents

Bidirectional Sync

Synchronization works in both directions for ERD and Class diagrams:

Diagram → Code

When you edit and save an ERD or Class diagram:

• Adding an entity or attribute generates or updates the corresponding code file
• Removing an element removes it from the code

Code → Diagram

When you edit and save a generated code file:

• Adding a property or method to an entity file (*.entity.ts / *_model.py) updates the ERD diagram
• Modifying a service, controller, or module (NestJS: *.service.ts, *.controller.ts, *.module.ts / FastAPI: *_service.py, *_router.py, __init__.py) updates the Class diagram

Note: Domain diagrams (.domain.castor) do not participate in code sync. Sequence diagrams (.seq.castor) participate indirectly in codegen context.

Monitoring Sync Activity

Open the bottom panel to monitor synchronization:

• Sync tab: Shows sync events such as nodes and relationships being added, updated, or removed across Requirements, Diagrams, and Code.
• Symbol Table tab: After requirement analysis, displays the extracted symbols (use cases, entities) with their type and text matches.

Triggering Synchronization

Automatic Sync

• Sync triggers automatically when you save files (Ctrl+S / Cmd+S)
• The status bar shows "Syncing..." during synchronization
• Once complete, it displays "Synced" with success/failure counts

Manual Sync

• Press Ctrl+Shift+P / Cmd+Shift+P to open the Command Palette
• Type Castor: Synchronize Code and Diagrams
• Or access via Go → Sync with Diagrams

Auto-Save Warning: If auto-save is enabled in your editor settings, Castor will warn you. Auto-save can cause frequent synchronization events. For best results, disable auto-save and manually save when ready.

Code Generation

Castor generates production-ready code from your ERD and Class diagrams. The code generation pipeline reads your Intermediate Representation (IR) graph and produces framework-specific files.

Triggering Code Generation with /promote

The primary way to trigger code generation is through the DAM agent's /promote command:

1. Open the AI Chat panel and select @DAM
2. Enable Act mode
3. Run: /promote

/promote takes your analyzed domain and sequence diagrams and generates implementation-level ERD and Class diagrams, which then automatically trigger code generation via sync.

You can also promote specific concepts: /promote Train Route

Project Configuration

Before code generation can run, Castor needs to know your target framework. This is stored in .castor/castor.config.json. If it doesn't exist when you run /promote, the DAM agent will prompt you to choose a framework. See Configuration for details.

Supported Frameworks

NestJS (TypeScript)

Files are generated per feature under src/<feature>/:

• src/<feature>/entities/<name>.entity.ts: Database entity definitions generated from ERD diagrams
• src/<feature>/entities/<name>.repository.ts: Data access layer generated from ERD diagrams
• src/<feature>/<name>.service.ts: Business logic layer with dependency injection generated from Class diagrams
• src/<feature>/<name>.controller.ts: REST API endpoints with decorators generated from Class diagrams
• src/<feature>/<name>.module.ts: Feature wiring and dependency registration generated from Class diagrams

FastAPI (Python)

Files are generated per feature under app/<feature>/:

• <feature>_model.py: SQLModel data models generated from ERD diagrams
• <feature>_router.py: API route definitions generated from Class diagrams
• <feature>_schema.py: Pydantic schemas for request/response validation generated from Class diagrams
• <feature>_service.py: Business logic layer generated from Class diagrams
• <feature>_repository.py: Data access layer generated from ERD diagrams
• __init__.py: Feature module initializer

How Code Generation Works

1. IR Analysis: The codegen service reads your IR graph
2. Symbol Conversion: IR nodes are converted to code symbols
3. Framework Conversion: Symbols are converted to framework-specific code based on your castor.config.json
4. File Writing: Generated code is written to src/<feature>/ (NestJS) or app/<feature>/ (FastAPI)

Which Diagrams Generate Code?

Not all diagram types produce code:

Diagram Type	File Extension	Generates Code?	Output
ERD	.erd.castor	Yes	Entity/model files
Class	.class.castor	Yes	Services, controllers, modules
Domain	.domain.castor	No	Used for requirements traceability
Sequence	.seq.castor	Indirectly	Participates in codegen context

Code Analysis Features

Castor can also analyze existing code to extract:

• Classes with properties, methods, constructors, and decorators
• Interfaces with methods and type parameters
• Enums with members and values
• Access modifiers (public, private, protected)
• Import/export relationships

File Monitoring

Castor watches your project files for changes and triggers synchronization automatically.

Monitored Files

The file monitor tracks:

• TypeScript files (.ts) for NestJS projects
• Python files (.py) under the app/ directory for FastAPI projects
• File creations, updates, and deletions

TypeScript exclusions

• Test files (*.test.ts, *.spec.ts)
• node_modules/, dist/, lib/

Python exclusions

• Any .py file not under an /app/ directory is ignored entirely
• node_modules/, dist/, lib/, /.venv/, /site-packages/

Status Bar Indicator

Look at the status bar at the bottom right of the IDE:

Status	Meaning
Syncing...	Synchronization is in progress
Synced	All changes synchronized successfully
Stats	Shows success/failure/skipped counts

Commands & Shortcuts

Quick reference for Castor-specific commands and keyboard shortcuts.

DAM Slash Commands

Run these in the AI Chat panel with @DAM selected and Act mode enabled:

Command	Description
/promote	Promote domain and sequence diagrams into code-generating ERD and Class diagrams
/promote <concept>	Promote specific concepts only (e.g. /promote Train Route)

Castor Panel Actions

Action	Location	Description
Analyze Requirements	Star icon next to Requirement Symbols → Requirements	Triggers requirement analysis, extracts symbols, and generates domain and sequence diagrams
Create File	Click a greyed-out artifact in the Castor Panel	Creates .castor/requirements.md, .castor/design.md, or .castor/validation-schema.md

Command Palette Commands

Access via Ctrl+Shift+P / Cmd+Shift+P:

Command	Description
Castor: Synchronize Code and Diagrams	Manually trigger synchronization between code and diagrams
Castor: Test ts-morph Integration	Test code analysis on the currently open file
Extract Requirement Symbol	Create a requirement from selected text

Menu Locations

Action	Menu Path
Open AI Chat	View → AI Chat
Sync with Diagrams	Go → Sync with Diagrams
Ask DAM Agent (in editor)	Right-click → Ask DAM Agent
Extract Requirement	Right-click → Extract Requirement Symbol

Keyboard Shortcuts

Action	Windows/Linux	macOS
Save File (triggers sync)	Ctrl+S	Cmd+S
Command Palette	Ctrl+Shift+P	Cmd+Shift+P

Configuration

Castor provides several configuration options to customize your experience.

Project Configuration (castor.config.json)

Each Castor project uses a configuration file at .castor/castor.config.json to control code generation behavior.

Framework Selection

The framework field determines which language and framework Castor generates code for:

{ "framework": "nestjs" }

{ "framework": "fastapi" }

Framework	Language	Description
nestjs	TypeScript	NestJS backend with entities, services, controllers, and modules
fastapi	Python	FastAPI backend with models, routers, and schemas

How It's Created

• Automatic: When you run /promote for the first time and no config file exists, the DAM agent prompts you to choose a framework and creates the file for you.
• Manual: Create .castor/castor.config.json yourself in the project root's .castor/ directory.

AI Preferences

Access via File → Preferences → Settings and search for "castor":

• Subscription Tier: Displays your current subscription tier (Free or Premium)
• Enable Analytics: Opt-in for anonymous usage analytics

Language Support

Castor supports all programming languages for creating requirements, design documents, and diagrams.

Round-Trip Engineering features (code generation and synchronization) are currently available for the following frameworks:

Framework	Language	Generated File Types
NestJS	TypeScript	src/<feature>/entities/<name>.entity.ts, src/<feature>/<name>.service.ts, src/<feature>/<name>.controller.ts, src/<feature>/<name>.module.ts
FastAPI	Python	app/<feature>/<feature>_model.py, app/<feature>/<feature>_router.py, app/<feature>/<feature>_schema.py, app/<feature>/<feature>_service.py, app/<feature>/__init__.py

You can select your framework when creating .castor/castor.config.json (see Configuration).

We are actively working on adding support for more languages and frameworks in future releases.
